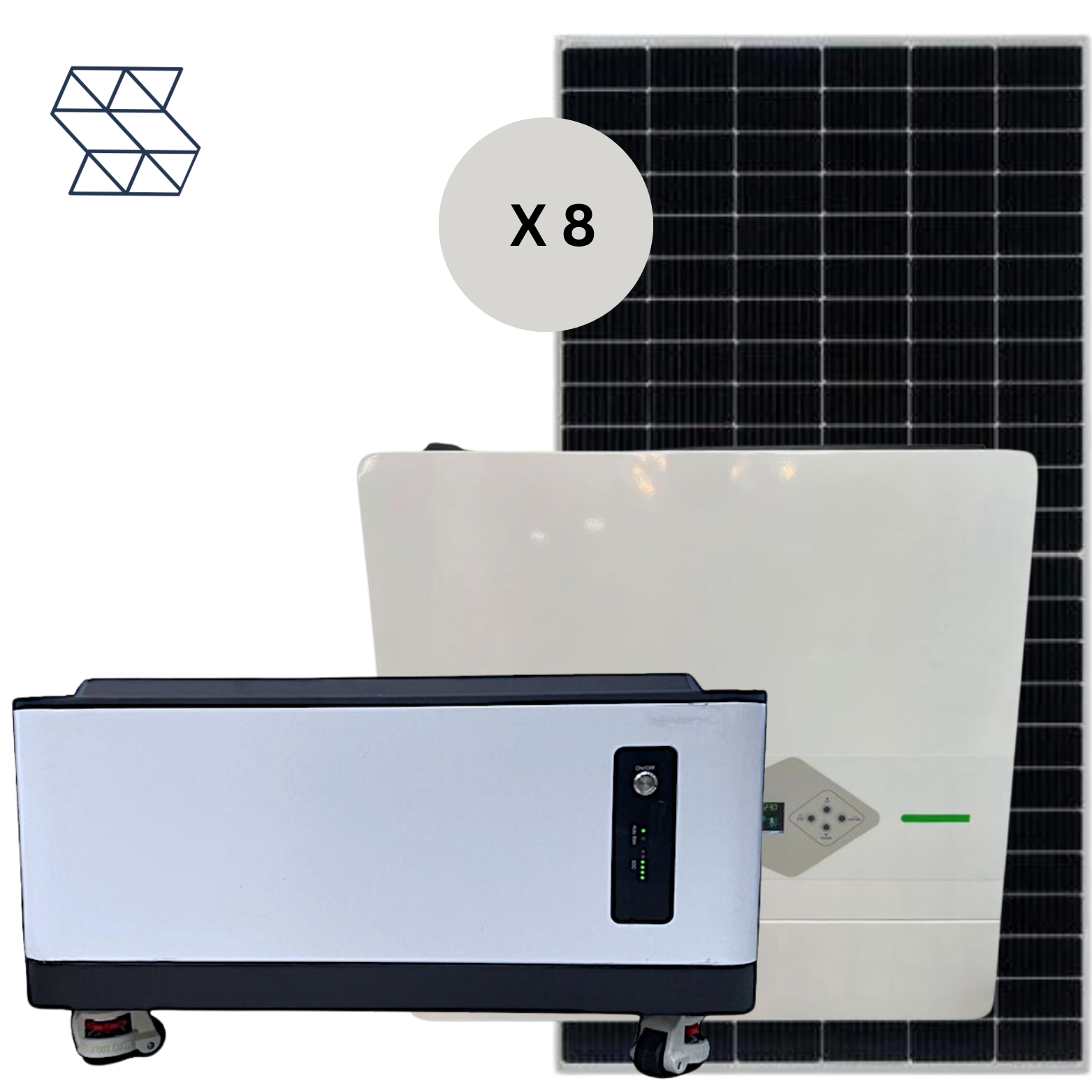

15kW Solar Back-up System Combo

Description

1 x SunMagic 15KVA 12000W 48V BX15048 500VDC WIFI Hybrid Solar Inverter

1 x 15.36kw 51.2v 300Ah High Quality LiFePO4 Battery

8 x 550W Solar Mono Panels

1 x SunMagic 15KVA 12000W 48V BX15048 500VDC WIFI Hybrid Solar Inverter

1 x 15.36kw 51.2v 300Ah High Quality LiFePO4 Battery

SunMagic 15KVA Hybrid Solar Inverter

-This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger, and battery charger to offer uninterruptible power support with portable size. AC/Solar charger priority, and acceptable input voltage based on different applications

-This MPPT inverter can power all kinds of appliances in the home or office environment during load-shedding, including motor-type appliances such as tube lights, fans, refrigerators, and air conditioners

-Configurable input voltage range for home appliances and personal computers via LCD setting. Configurable battery charging current based on applications via LCD setting

Features;
-Pure sine wave output
-Auto restart if AC is recovering
-Overload protection
-Battery reverse protection
-Dust-proof capability
-High/ low voltage protection
-Built-in MPPT controller
-AGM battery, lithium battery
-Output short circuit protection

Iron phosephate-lithium power battery
Higher energy density, smaller volumn for household
Support connected in parallel mode for expansion
Photovoltaic system: This battery pack is designed for household photovoltaic systems.
Battery management system(BMS): The battery packs built-in monitors its operation and prevents the battery from operating outside limitations.
Expandability: This battery pack can easily expanded by adding expansion battery packs in parallel connection.

Specifications

Model- FS-A01-48300

Usable Capacity- 15360WH

Rated Voltage- 51.2V

Voltage Range- 43.2-58.4

Max Continuous Change Current- 150A

Max Continuous Discharge Current- 200A

Max Output Power- 10240W

Recommended Output Power- 8000W

DOD- >95%

Model Communication- 1-3 in Parallel

Communication- 485/CAN

Ingress Protection- IP21

Cycles Life- >6000

2 year warranty

Package Dimensions:

Product Dimension- 750 x 500 x 280mm

Package Dimension- 820 x 570 x 45mm

NW 133kgs

GW 116.2kgs

Package include:

1 x FS-A01-48300 Lithium Battery

2 x Battery Cable

1 x Communication Cable

1 x Manual Book
